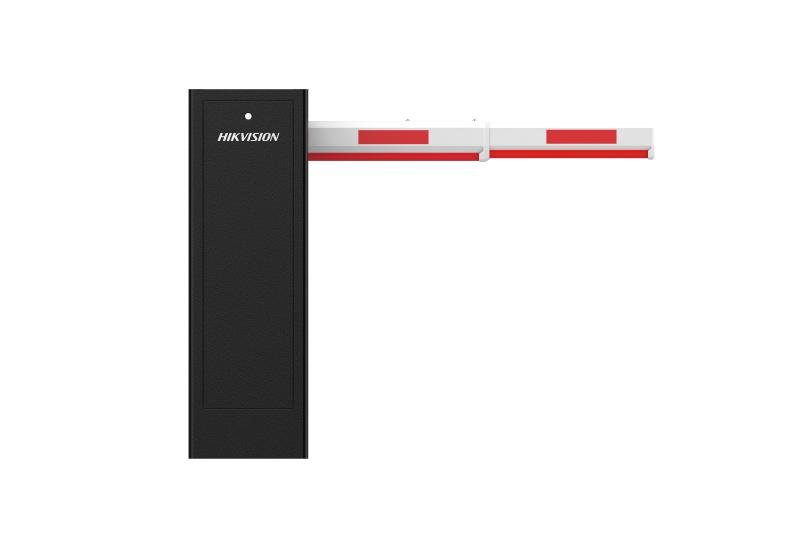

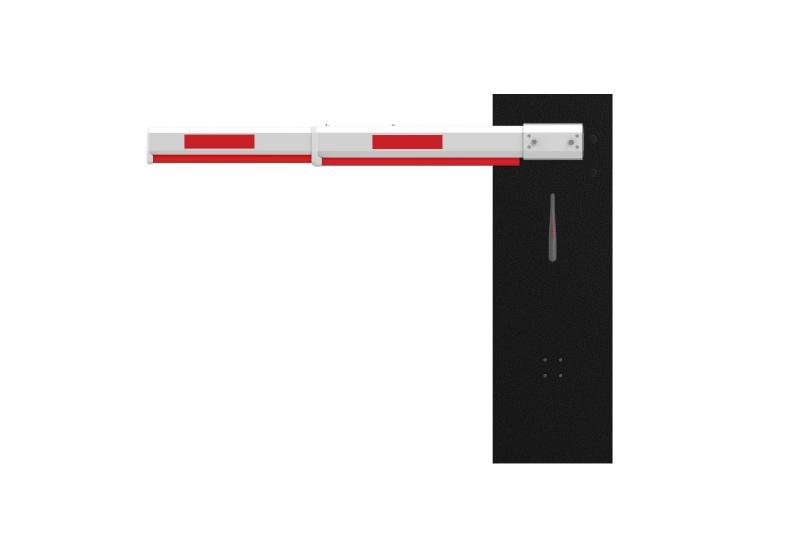

Hikvision 30 Series Boom Barrier DS-TMG300-DL/A/B (4m Light)

Buy Hikvision 30 Series Boom Barrier DS-TMG300-DL/A/B (4m Light) for reliable, intelligent, and durable vehicle access control. Designed for parking lots, residential complexes, industrial sites, and commercial facilities, this automatic barrier gate combines precision control, low noise, and long service life for seamless entry management.

Equipped with a DC brushless motor and side installation support, the 30 Series boom barrier ensures smooth lifting and lowering with minimal maintenance. Its advanced safety features—including infrared sensors, vehicle detectors, and radar integration—offer dependable anti-fall protection and delayed closing (1–99 seconds) for optimal traffic control.

Key Features

• Compact & Convenient Design: Supports side installation with a space-efficient structure.
• DC Brushless Motor: Ensures low noise, high torque, and precise intelligent control.
• Multiple Anti-Fall Protections: Works with infrared sensors, vehicle detectors, and radar for enhanced safety.
• Adjustable Boom Delay: Set boom closing delay between 1 to 99 seconds for flexible operations.
• Durable Build: Made from cold-rolled steel sheet with protective black and silver pattern finish.
• High Duty Cycle: 100% operational cycle with up to 2.5 million cycles lifespan.
• IP54 Protection: Reliable performance in outdoor environments.
• Optional Power-Off Raising: Ensures continued access during power interruptions.

Technical Specifications

Barrier Housing

• Material: Cold-rolled steel sheet
• Thickness: Body – 1.2 mm; Door – 1.0 mm
• Color: Black background with silver pattern
• Installation Height: 880 mm
• Ingress Protection: IP54

Motor & Performance

• Motor Type: DC brushless motor
• Power Consumption: 100 W
• Duty Cycle: 100% continuous operation
• Cycle Life: 2,500,000+ operations

Boom Pole

• Type: Octagonal straight boom pole
• Length Options: 3m to 6m telescopic pole
• Rising/Falling Speed:
  • 3m pole – 3s rise/fall
  • 2.5m–4.5m pole – 3s rise/fall
  • 3.4m–6m pole – 6s rise/fall
• Material: Aluminum alloy (6063)
• Color: White with red reflective bars
• Weight:
  • 4.5m pole – 4.8 ± 0.2 kg
  • 6m pole – 6.5 ± 0.2 kg

Interfaces

• Communication: RS-485
• Control Inputs: Open, Close, Stop, Rising/Falling Limit, IR/Vehicle Detector/Radar, Traffic Signal Light

Power Supply

• Input Voltage: 110–240 VAC (default 220V, switchable)

Package Details

• Housing Dimensions: 325 × 220 × 1000 mm
• Body Weight: 26 ± 0.2 kg
• Package Dimensions: 385 × 305 × 1060 mm
• Total Weight (with package): 29.1 ± 0.2 kg

Applications

• Parking Lots: Automatic access for vehicles with safety detection.
• Commercial Buildings: Smooth entry control with professional aesthetics.
• Industrial Sites: Heavy-duty reliability for continuous operation.
• Residential Complexes: Secure and efficient vehicle gate management.
• Toll Stations & Warehouses: Fast, accurate, and automated barrier control.
