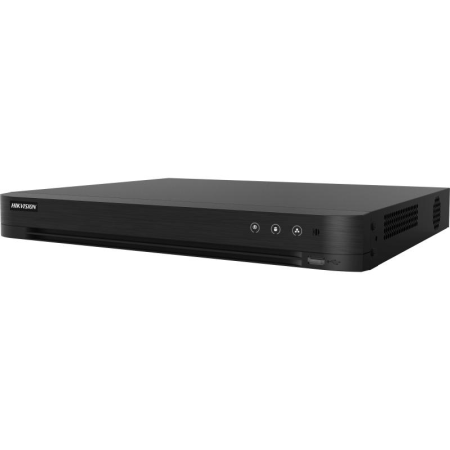

Hikvision DS‑7232HQHI‑M2/S(STD)(E) – 32‑Channel 1080p DVR with Dual HDD Bays
Hikvision DS‑7232HQHI‑M2/S(STD)(E) is a 32‑channel Turbo HD DVR offering robust performance and advanced analytics for demanding surveillance setups. It supports 32 analog channels and hybrid inputs, enabling integration with analog HDTVI/AHD/CVI/CVBS cameras and IP cameras (up to 40 channels in enhanced mode).
This DVR features dual SATA bays for high‑capacity storage, efficient H.265 Pro+ / H.265 / H.264+/H.264 video compression, and smart analytics like Motion Detection 2.0 and perimeter protection to classify human/vehicle targets and reduce false alerts.
With support for up to 3K/5 MP Lite encoding (when enabled), HDMI and VGA simultaneous output, and a compact 1U chassis, the DS‑7232HQHI‑M2/S(STD)(E) delivers flexible monitoring and playback options.
Key Features:
• 32 analog video inputs + hybrid IP support (up to 40 channels)
• Adaptive 5‑signal input: HDTVI / AHD / CVI / CVBS / IP
• Efficient H.265 Pro+ / H.265 / H.264+/H.264 compression
• Smart analytics: Motion Detection 2.0, human/vehicle classification, perimeter protection
• Dual SATA bays (each drive supports up to 10 TB+)
• Simultaneous HDMI + VGA outputs; compact 1U rack‑mountable design
Specifications:
| Specification | Details |
| Model | DS‑7232HQHI‑M2/S(STD)(E) |
| Analog Channels | 32 × BNC |
| IP Camera Support | Up to 2 IP channels standard; up to 40 channels enhanced mode |
| Video Compression | H.265 Pro+ / H.265 / H.264+ / H.264 |
| Encoding Resolution | Up to 3K / 5 MP Lite / 4 MP Lite / 1080p / 720p |
| Storage Interface | 2 × SATA bays (10 TB+ per HDD) |
| Operating Temperature | –10 °C to +55 °C |
| Dimensions (W × D × H) | Ø approx. 380 × 320 × 48 mm |
Enhance your surveillance infrastructure with the Hikvision DS‑7232HQHI‑M2/S(STD)(E) 32‑Channel DVR, available at your trusted Hikvision shop in Kenya — a high‑capacity, intelligent, and scalable solution for large‑scale video recording and monitoring.
