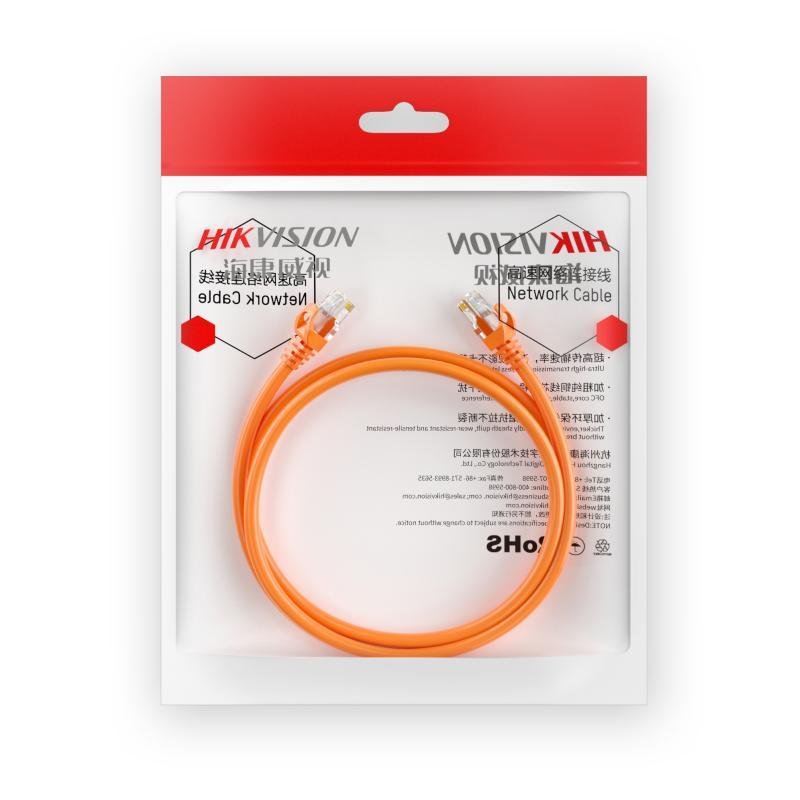

Hikvision DS-1NP6UEC0 – Patch Cord for LED Display & Networking Applications
Hikvision DS-1NP6UEC0 is a premium Cat6 patch cable (U/UTP, 24 AWG copper) designed for high-performance network connectivity in LED display systems, surveillance networks, and other professional installations. Featuring bare-copper conductors, gold-plated RJ45 connectors, and a durable PVC sheath, it ensures stable data transmission, minimal signal loss, and long-lasting performance.
This patch cord is compliant with international cabling standards, supporting Gigabit Ethernet (1000BASE-T) and ensuring strong and stable connections across various digital display and communication systems. It’s ideal for connecting LED panels, video walls, and networked signage systems that require uninterrupted data flow.
Key Features:
• Cat6 U/UTP 24 AWG copper patch cord for high-speed data transfer
• Bare copper conductor (99.95%) for superior electrical performance
• Gold-plated RJ45 plugs for enhanced contact reliability
• Sheath with high tensile and compressive strength
• Compliant with TIA-568.2-D and ISO/IEC 11801 standards
• Suitable for Gigabit Ethernet (1000BASE-T) applications
• Available in multiple lengths (0.5 m, 1 m, 2 m, 3 m, 5 m, 10 m) for flexible installations
Specifications:
| Specification | Details |
| Model | DS-1NP6UEC0 |
| Cable Category | Cat6 (U/UTP) |
| Conductor Material | Bare Copper (99.95%) |
| Conductor Size | 7 × 0.2 mm / 24 AWG |
| Insulation Material | HDPE |
| Sheath Material | PVC (Thickness ≈ 0.50 ± 0.05 mm) |
| Sheath Diameter | Approx. 5.8 ± 0.20 mm |
| Plug Material | PC (UL94V-0) |
| Gold-Plated Plug Thickness | 30 µ-inch |
| Impedance | 100 ± 15 Ω |
| DC Resistance | ≤ 9.4 Ω / 100 m |
| Available Lengths | 0.5 m, 1 m, 2 m, 3 m, 5 m, 10 m |
| Operating Voltage | 57 V |
| Color Options | Grey / Orange |
| Standards Compliance | TIA-568.2-D, ISO/IEC 11801, RoHS 2.0 |
