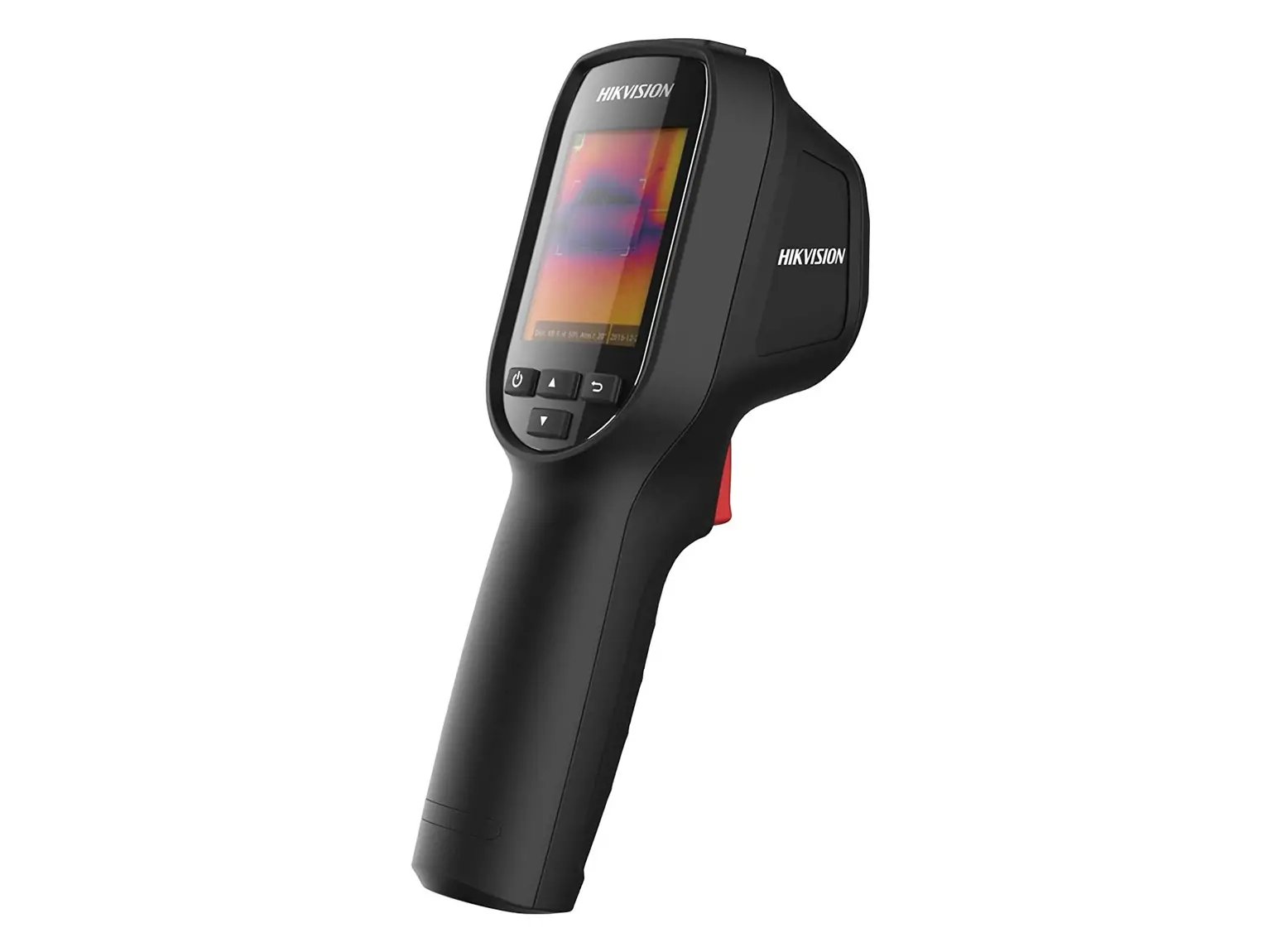

HIKVISION DS-2TP31B-3AUF – Thermographic Handheld Camera

HIKVISION DS-2TP31B-3AUF provides reliable thermal imaging and temperature measurement in a compact handheld format. It supports quick detection of temperature variations, making it suitable for electrical inspections, equipment maintenance, building diagnostics, and safety screening.

This thermographic camera combines a thermal sensor with a visible light camera, enabling clear scene reference and accurate hotspot identification. The ergonomic handheld design supports comfortable operation during extended inspections. Its rechargeable battery supports mobile use across different environments. With precise thermal detection and simple operation, this handheld camera supports professionals who require fast and accurate temperature analysis.

Specifications

• Thermal Resolution: 160 × 120 pixels.
• Temperature Measurement Range: 30°C to 45°C for screening (or a wider -20°C to 550°C for general industrial use, depending on the specific mode/firmware).
• Accuracy: Up to ±0.5°C for skin-surface temperature screening.
• Display: 2.4-inch LCD screen with 320 x 240 resolution.
• Battery Life: Up to 8 hours of continuous use.
• Storage: Removable 8GB memory card included, expandable up to 128GB.
• Connectivity: Micro USB interface for data transfer and charging.
• Protection Level: IP54-rated (dust and splash-proof).
• Dimensions: 196 mm × 117 mm × 59 mm (7.7″ × 4.6″ × 2.3″).
• Weight: Less than 350 g (0.77 lb).

Features

• Thermography: The device detects and displays real-time temperature on the screen. It supports multiple color palettes including Black hot, White hot, Rainbow, and Ironbow.
• Alarm Function: The camera supports an audible and visual color alarm that triggers if the temperature measurement is higher than a preset value.
• Applications: It is ideal for use in busy indoor environments such as offices, factories, stations, airports, and schools for preliminary skin-temperature screening.
• Ease of Use: Adopting an ergonomic design, the handheld camera is easy to operate. It also has a tripod attachment for stationary use.

Applications

• Electrical and mechanical inspections
  • Preventive maintenance
  • Building and insulation diagnostics
  • Safety screening and temperature checks
  • Industrial and commercial use

Enhance inspection accuracy with the HIKVISION DS-2TP31B-3AUF Thermographic Handheld Camera. Get portable thermal imaging, accurate temperature measurement, and easy handheld operation for professional diagnostics and safety monitoring.
