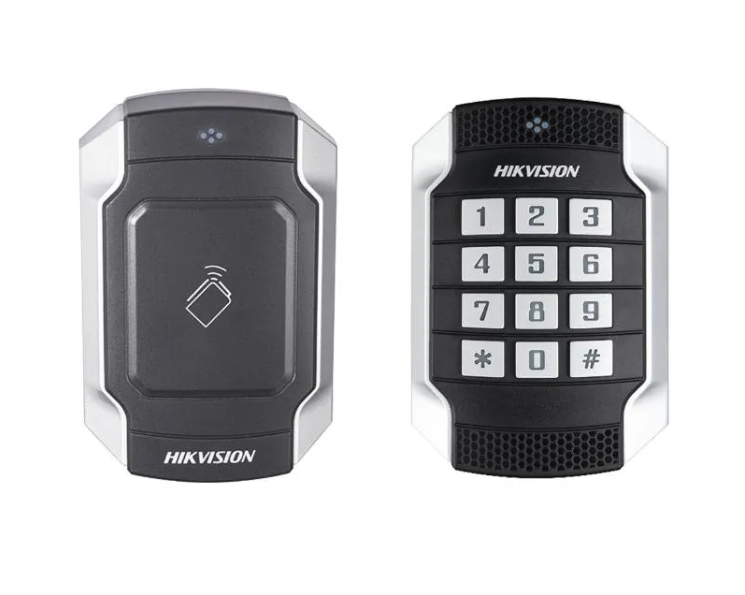

Hikvision DS-K1104MK MIFARE Card Reader & Keypad

Buy Hikvision DS-K1104MK MIFARE Card Reader & Keypad, a high-security access control device designed for indoor and outdoor environments. Engineered with MIFARE 13.56 MHz smart card technology and a built-in keypad, this Hikvision access reader ensures multi-factor authentication for enhanced security.

With its IP65 weatherproof and IK10 vandal-resistant housing, the DS-K1104MK is built to withstand harsh outdoor conditions while maintaining reliable performance. Ideal for commercial buildings, industrial sites, and secure facilities, it supports RS-485 and Wiegand protocols for flexible integration into existing Hikvision or third-party access systems.

Key Features

• Supports MIFARE Smart Cards (13.56 MHz) for secure, contactless access.
• Integrated Keypad for PIN entry or card + PIN authentication.
• Tamper-Resistant Alarm to prevent unauthorized interference.
• IP65 & IK10 Rated – weatherproof and impact-resistant for outdoor durability.
• RS-485 and Wiegand (W26/W34) Protocols ensure versatile connectivity.
• LED Indicators & Beeper provide visual and audio status feedback.
• Compact & Modern Design blends with professional installations.
• Easy Installation for wall mounting in indoor or outdoor environments.

Specifications

• Hikvision DS-K1104MK MIFARE Card Reader & Keypad
• Processor: 32-bit high-speed processor
• Reading Frequency: 13.56 MHz (MIFARE)
• Reading Range: ≤ 50 mm (≤ 1.97″)
• Keypad: 12 keys (0–9, *, #)
• LED Indicators: Power indicator, status indicator
• Auditory Alert: Built-in beeper
• Tamper Alarm: Supported
• Ingress Protection: IP65 (weatherproof)
• Impact Protection: IK10 (vandal-resistant)
• Interface: RS-485 and Wiegand (W26/W34)
• ID Settings: Via DIP switch
• Installation: Wall mounting
• Power Supply: 12 VDC

Application Areas

• Corporate Offices and Commercial Complexes
• Government and Educational Institutions
• Industrial and Manufacturing Facilities
• Warehouses and Logistic Centers
• Residential Compounds and Security Entrances
