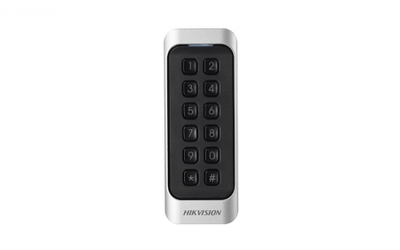

Hikvision DS-K1107MK MIFARE Card Reader & Keypad

Buy Hikvision DS-K1107MK MIFARE Card Reader & Keypad, a professional-grade access control reader designed for secure, fast, and efficient authentication. This advanced Hikvision access control device combines MIFARE smart card technology with a numeric keypad, allowing users to verify access using card, PIN, or both for enhanced security.

Built with an IP65-rated weatherproof housing, the DS-K1107MK is ideal for indoor and outdoor installations. Its tamper alarm, LED indicators, and buzzer alerts provide reliable operation and real-time feedback. Perfect for commercial buildings, institutions, and industrial security systems, this Hikvision MIFARE reader ensures dependable access management in any environment.

Key Features

• Supports MIFARE Smart Cards (13.56 MHz) for encrypted, secure access.
• Integrated 12-Key Keypad for PIN and dual authentication modes.
• Tamper-Resistant Alarm prevents unauthorized tampering or device removal.
• IP65 Waterproof and Dustproof Design for all-weather durability.
• RS-485 and Wiegand (W26/W34) Protocol Support for flexible connectivity.
• LED Indicators & Buzzer Feedback for status and operation alerts.
• Low Power Consumption (≤ 2 W) with efficient performance.
• Compact Wall-Mount Design with easy installation and long service life.

Specifications

• Hikvision DS-K1107MK MIFARE Card Reader & Keypad
• Processor: 32-bit high-speed processor
• Card Type: MIFARE (13.56 MHz)
• Reading Range: ≤ 50 mm (≤ 1.97″)
• Keypad: 12 keys (0–9, *, #)
• LED Indicators: Power and status
• Tamper Alarm: Supported
• Ingress Protection: IP65 (indoor/outdoor use)
• Power Supply: 12 VDC
• Power Consumption: ≤ 2 W
• Installation: Wall mounting with screws (no gang box support)

Application Areas

• Office Buildings and Corporate Access Points
• Educational Institutions and Government Facilities
• Industrial Sites and Warehouses
• Healthcare Centers and Data Rooms
• Residential and Commercial Security Systems
