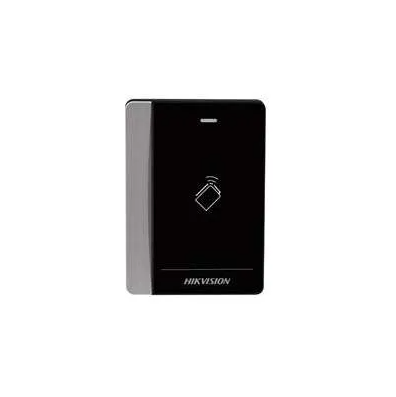

Hikvision DS-K1108AM Card Reader

Buy Hikvision DS-K1108AM Card Reader, a compact and high-performance device designed for secure access control systems in residential, commercial, and industrial environments. Supporting Mifare 1 cards with a reading distance of up to 5 cm, this reader delivers fast, stable, and contactless authentication for smooth entry management.

The DS-K1108AM features RS-485 and Wiegand (W26/W34) interfaces, ensuring flexible integration with a wide range of Hikvision and third-party controllers. Built for durability, it comes with an IP64-rated housing that protects against dust and water splashes—perfect for both indoor and semi-outdoor installations.

Key Features

• Efficient Mifare Card Reading: Supports Mifare 1 cards with a reading distance of up to 5 cm.
• Dual Communication Interfaces: RS-485 and Wiegand (W26/W34) for versatile system integration.
• Fast Data Transfer: Communication speed of 9600 bps (N, 8, 1).
• Low Power Consumption: Operates on 12 VDC (± 10%) with ≤ 2 W power usage.
• Durable Design: IP64-rated enclosure provides dust and water-splash protection.
• Easy Integration: Compatible with Hikvision controllers and standard access systems.

Specifications

• Hikvision DS-K1108AM Card Reader
• Card Type: Mifare 1 Cards
• Reading Distance: Up to 5 cm (1.97 inches)
• Communication Interface: RS-485, Wiegand (W26/W34)
• Communication Speed: 9600 bps (N, 8, 1)
• Power Supply: 12 V DC (± 10%)
• Power Consumption: ≤ 2 W
• IP Rating: IP64 (dust and water-splash resistant)

Applications

Ideal for:

• Office Buildings
• Residential Complexes
• Industrial Access Points
• Commercial Facilities
• Educational Institutions
