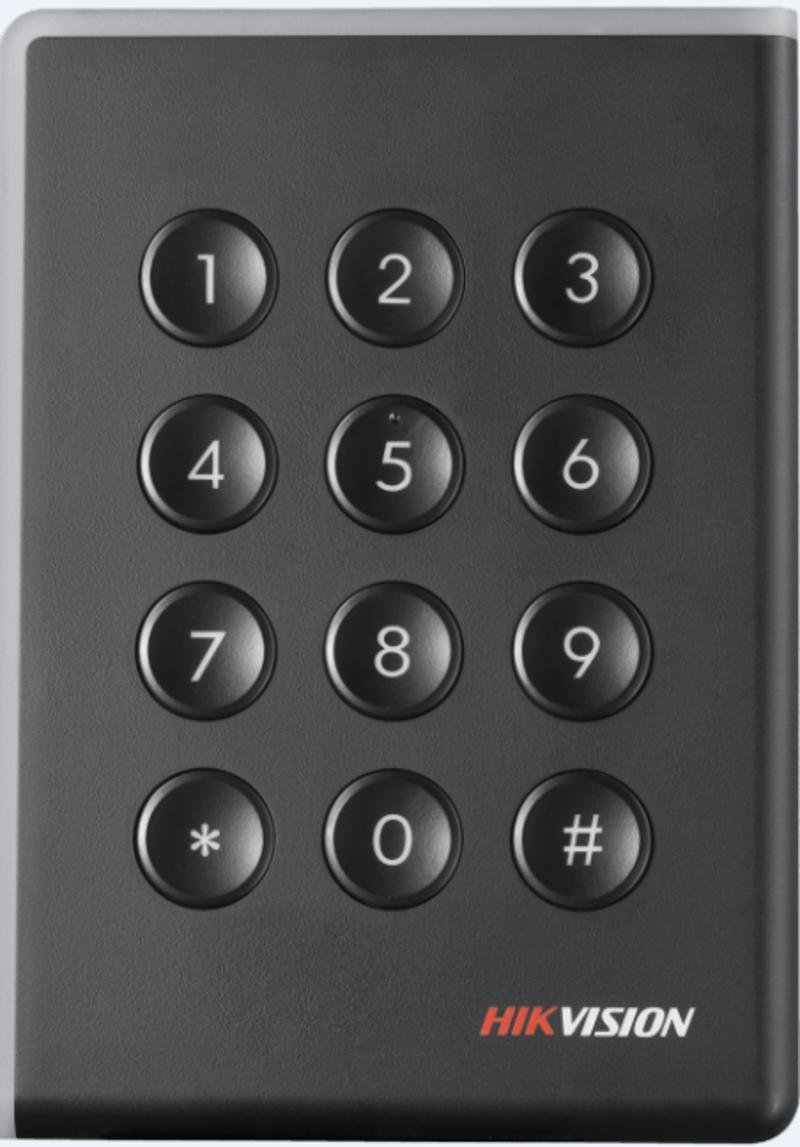

Hikvision DS-K1108MK Card Reader with Keypad – Access Control System
Buy Hikvision DS-K1108MK Card Reader with Keypad, a durable and high-performance access control reader designed for both indoor and outdoor security systems.
This Hikvision access control reader supports MIFARE cards and integrates seamlessly with Hikvision’s Basic+ and Pro Series door controllers, ensuring reliable, secure, and fast identification in various environments.
Equipped with a 12-key numeric keypad, the DS-K1108MK allows for PIN and card-based authentication, offering flexibility for different security requirements. Built to the IP65 protection standard, it ensures resistance against dust and water, making it ideal for commercial and industrial installations.
The device supports both RS-485 and Wiegand communication protocols, configurable via DIP switch, for easy integration with existing systems. With a sleek aluminum design and tamper-proof construction, it delivers security and reliability you can trust.
Key Features
- Dual Authentication Options – Supports MIFARE card and PIN code via the 12-key keypad.
- Multiple Communication Modes – Compatible with RS-485 and Wiegand (W26/W34) protocols for flexible installation.
- Secure and Reliable – Equipped with tamper-proof protection and LED status indicators for real-time feedback.
- Weather-Resistant Design – Built to IP65 standards, suitable for indoor and outdoor environments.
- Fast & Accurate Card Reading – Reads MIFARE cards up to 50mm and EM cards up to 100mm efficiently.
- User-Friendly Configuration – DIP switch settings allow easy configuration and system integration.
- Elegant and Robust Build – Designed with a sleek aesthetic, ideal for corporate, retail, and industrial premises.
Technical Specifications
- Hikvision DS-K1108MK Card Reader with Keypad
- Processor: 32-bit high-speed processor
- Card Type: MIFARE (13.56 MHz) / EM Card (125 kHz)
- Card Reading Distance: MIFARE ≤ 50 mm (≤1.97″); EM ≤ 100 mm (≤3.94″)
- Keypad: 12 Keys (0–9, *, #)
- Communication Mode: RS-485 / Wiegand (set via DIP switch)
- Radio Frequency Standard: ISO 14443-A
- Tamper Alarm: Supported
- Indicators: Power LED & Status LED
- Buzzer: Supported for operation prompts
- Protection Level: IP65 (Dust and Water Resistant)
- Installation: Wall Mounting with/without Gang Box
Application Areas
- Office Buildings and Corporate Facilities
- Industrial and Warehouse Access Points
- Educational Institutions and Campuses
- Government and Secure Premises
- Residential Complexes and Gated Communities
- Retail Outlets and Commercial Establishments
