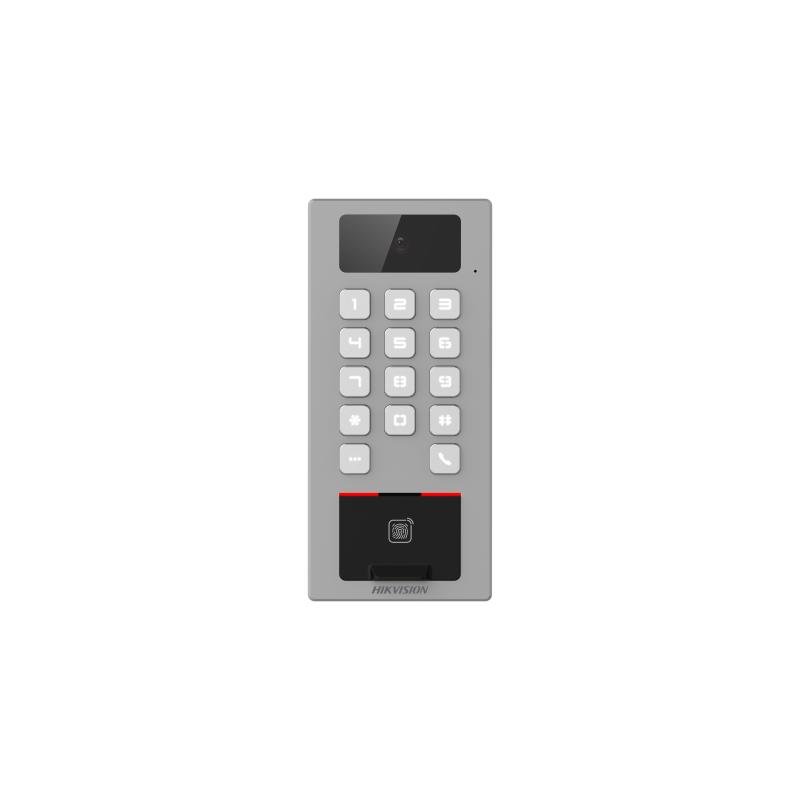

Hikvision DS-K1T502DBFWX-C Access Control Terminal

Buy Hikvision DS-K1T502DBFWX-C Access Control Terminal, a premium all-in-one security solution integrating access control, video intercom, and video monitoring functions. Designed with a robust zinc alloy housing and IP65 / IK09 protection, this terminal ensures durability, reliability, and high performance in demanding environments.

Equipped with a 2 MP camera, capacitive fingerprint module, and multi-card reader (Mifare, Felica, and DESFire), the DS-K1T502DBFWX-C offers multi-factor authentication and seamless connectivity through TCP/IP, Wi-Fi, and RS-485 interfaces. It supports mobile management via the Hik-Connect app, enabling remote access, live view, and two-way intercom communication for comprehensive control and monitoring.

Key Features

• All-in-One Access Solution: Combines access control, video intercom, and surveillance in a single device.
• Multi-Authentication Methods: Supports fingerprint, card (Mifare, Felica, DESFire), PIN, and mobile app access.
• High-Capacity Storage: Stores up to 10,000 fingerprints, 100,000 cards, and 300,000 events.
• Integrated Camera: Built-in 2 MP wide-angle camera for video capture and intercom functionality.
• Rugged and Reliable: IP65 and IK09 rated with zinc alloy body for durability and outdoor use.
• Two-Way Audio & Video Intercom: Supports SIP protocol for compatibility with popular SIP servers (Brekeke, FreePBX, Asterisk, 3CX, etc.).
• Flexible Communication:
  • Uplink: TCP/IP, Wi-Fi
  • Downlink: RS-485, Wiegand
• Hik-Connect App Integration: Remote management, live video, door unlock, and intercom via smartphone.
• Expandable Storage: Supports up to 256 GB SD card for video and data recording.
• AP Mode Support: Enables standalone access management and wireless configuration.
• Custom Network Settings: Configure priority between wired and wireless connections.
• Press-to-Call Function: Call the management center, indoor station, or Hik-Connect App directly.

Specifications

• Hikvision DS-K1T502DBFWX-C Access Control Terminal
• Camera: 2 MP
• Card Types: Mifare, Felica, DESFire
• Fingerprint Capacity: 10,000
• Card Capacity: 100,000
• Event Capacity: 300,000
• Display: LCD screen
• Audio: Two-way audio intercom
• Network Interfaces: TCP/IP, Wi-Fi, RS-485, Wiegand
• Protocols: SIP (supports Brekeke, FreePBX, Asterisk, 3CX, ELASTIX, PBXware)
• Storage: Up to 256 GB SD card supported
• Material: Zinc alloy
• Protection Level: IP65, IK09
• App Support: Hik-Connect mobile app
• Operating Modes: Local or platform mode with PIN configuration

Application Areas

• Corporate and Enterprise Buildings
• Industrial and Manufacturing Sites
• Government and Administrative Offices
• Educational and Healthcare Facilities
• Residential Complexes and Smart Buildings
• Data Centers and Secure Facilities
