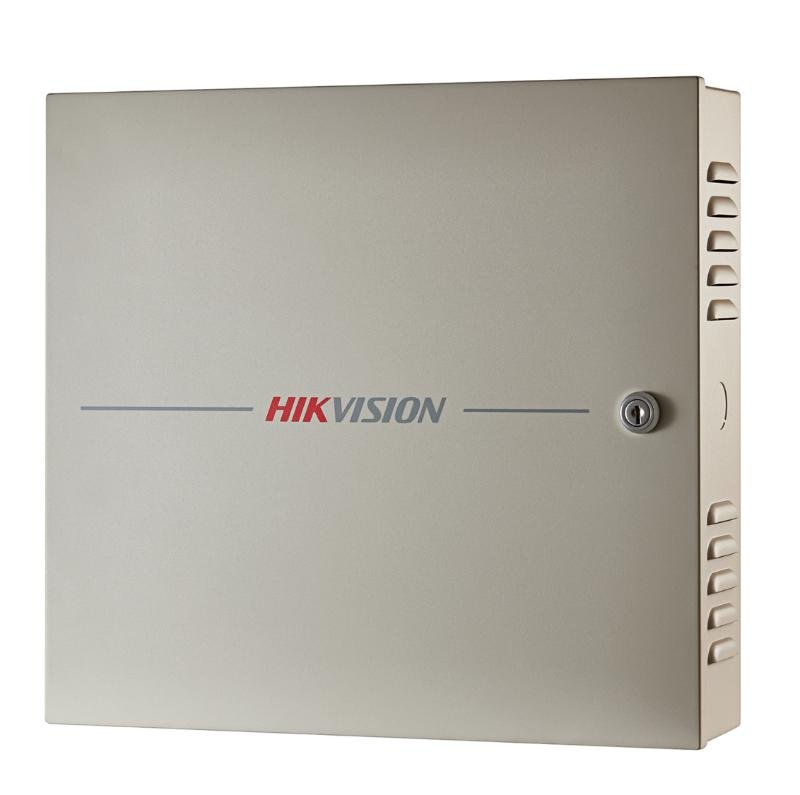

Hikvision DS-K2601T(O-STD) 1-Door Access Controller

Buy Hikvision DS-K2601T(O-STD) 1-Door Access Controller, a professional-grade Pro Series access control device designed for secure and efficient door management in residential, commercial, and industrial facilities. It supports TCP/IP and RS-485 communication, 100,000 cardholders, and 300,000 event records, ensuring high performance and reliability for modern access control systems.

This controller offers advanced security features such as anti-passback, multi-door interlocking, first card unlock, and tamper-proof protection, making it ideal for enterprise-level security integration with Hikvision readers and iVMS-4200 software.

Key Features

• Single-Door Control: Manages one door with bidirectional access.
• Large Capacity: Stores up to 100,000 cards and 300,000 event logs.
• Multi-Authentication Modes: Supports Card, PIN, and Card + PIN.
• Advanced Security: Includes anti-passback, first card unlock, and tamper alarm.
• Flexible Communication: Dual interfaces — TCP/IP and RS-485.
• Remote Management: Supports online configuration and firmware upgrades.
• Offline Operation: Continues functioning during network outages.
• Seamless Integration: Compatible with Hikvision iVMS-4200, HikCentral, and third-party systems.

Specifications

• Controlled Doors: 1 (entry & exit)
• Card Capacity: 100,000 users
• Event Capacity: 300,000 records
• Processor: 32-bit high-speed
• Communication: TCP/IP, RS-485
• Reader Interface: RS-485 / Wiegand (W26/W34)
• Power Supply: 12V DC, 1A
• Power Consumption: ≤10W
• Dimensions: 170 × 105 mm
• Mounting: Wall or cabinet mount
• Tamper Alarm: Supported
• Backup Battery: Supported

Application Areas

• Office buildings and corporate facilities
• Residential complexes and gated communities
• Industrial and manufacturing sites
• Government institutions
• Financial and data centers
• Hospitals and universities
