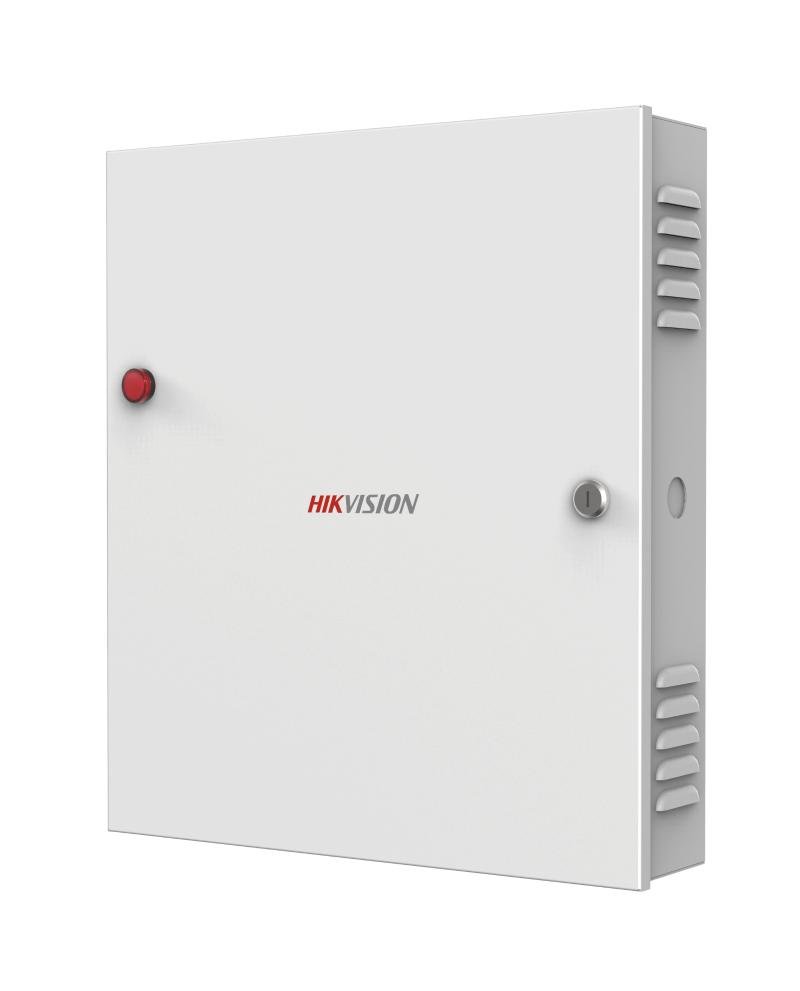

Hikvision DS-K2602 Double-Door Access Controller

Buy Hikvision DS-K2602 Double-Door Access Controller, a professional-grade access control solution designed for high-security environments that demand reliability, scalability, and real-time performance. Featuring encrypted TCP/IP communication, RS-485 & Wiegand card reader interfaces, and UL294 certification, this Pro Series controller ensures secure door management across commercial, corporate, and industrial applications.

Engineered for stability and efficiency, the DS-K2602 supports two-door access control, multi-alarm input/output, and massive card and event storage capacity. It also integrates seamlessly with Hikvision NVRs, DVRs, and third-party systems through ISAPI, OSDP, and ISUP 5.0 protocols.

Key Features

• Dual-Door Access Control:
  Manages and controls up to two doors independently, supporting advanced access policies and configurations.
• High-Capacity Storage:
  • Up to 100,000 card users (expandable to 200,000)
  • Stores up to 300,000 event logs, ensuring no data loss
• Encrypted Communication:
  Data transmission secured through TCP/IP network and RS-485 interfaces with advanced encryption technology.
• Flexible Reader Interfaces:
  Supports RS-485 and Wiegand (W26/W34) interfaces for connection with multiple card readers, including third-party devices.
• Seamless Integration:
  Integrates effortlessly with Hikvision Pro Series NVRs/DVRs and supports ISUP 5.0, ISAPI, and OSDP protocols for flexible system expansion.
• Comprehensive Alarm Support:
  Equipped with multiple alarm inputs and outputs, including:
  • Tamper-proof alarm
  • Fire relay alarm
  • Forced door open and door held open alarms
  • Invalid card attempts and duress alarms
• UL294 Certified:
  Complies with UL294 access control safety standards, ensuring industrial-grade reliability and performance.
• Offline Operation:
  Continues access control operations even when disconnected from the network.
• Battery Backup Support:
  Ensures uninterrupted operation during power failures.
• Tamper Protection:
  Built-in tamper switch safeguards against unauthorized interference.

Technical Specifications

• Processor: 32-bit high-speed processor
• Card Capacity: 100,000 (expandable to 200,000)
• Event Storage: 300,000
• Doors Controlled: 2

Communication & Interfaces

• Network Interface: TCP/IP, ISUP 5.0, RS-485
• Reader Interface: RS-485 and Wiegand (W26/W34)
• Lock Control: 2
• Exit Buttons: 2
• Door Contacts: 2
• Alarm Inputs: 4
• Alarm Outputs: 4
• Tamper Input: 1

Power & Environmental

• Power Supply: 100–240 VAC
• Power Consumption:
  • ≤ 4 W (without load)
  • ≤ 100 W (with load)
• Dimensions: 398 × 474 × 100 mm (15.7″ × 18.7″ × 3.9″)

Applications

• Corporate Offices & Business Complexes
• Financial Institutions & Data Centers
• Government Facilities & Secure Zones
• Industrial Plants & Warehouses
• Educational Campuses & Institutions
