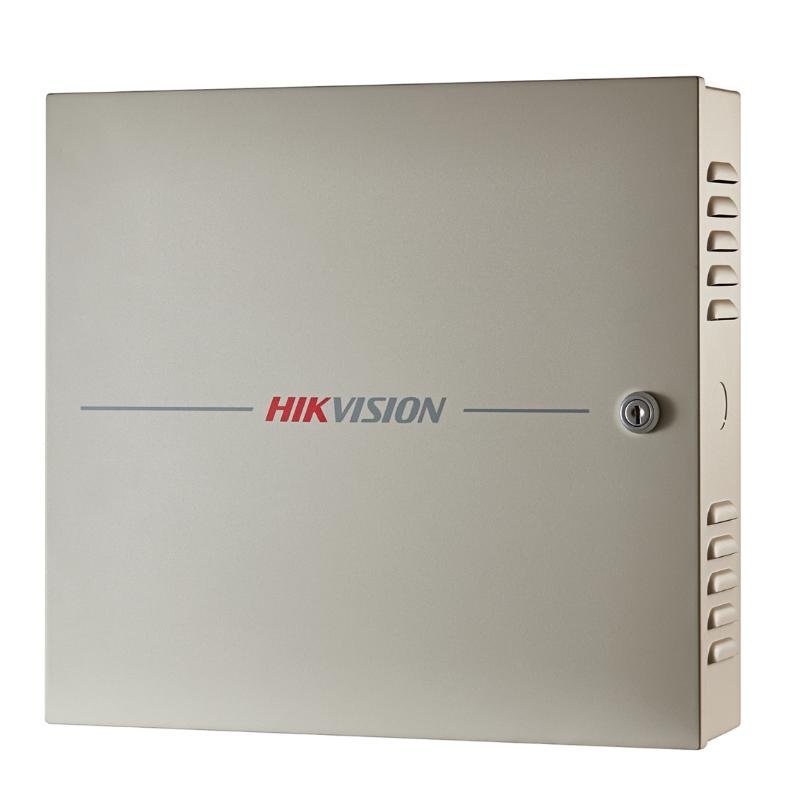

Hikvision DS-K2602T Double Door Network Access Controller

Buy Hikvision DS-K2602T Double Door Network Access Controller, a high-performance Pro Series access control unit designed for professional and enterprise-grade security systems. Featuring dual-door management, encrypted TCP/IP communication, and offline operation support, this controller provides a secure, reliable, and scalable solution for comprehensive access management.

DS-K2602T is powered by a 32-bit high-speed processor that ensures fast response, enhanced data security, and robust multi-door interlocking capabilities. Ideal for commercial buildings, financial institutions, and critical infrastructure, this controller ensures seamless and secure access operations even in demanding environments.

Key Features

• Dual Door Access Control:
  Controls and manages up to two doors independently with various access methods.
• High-Speed Processing:
  Equipped with a 32-bit processor for stable and efficient performance.
• Encrypted Communication:
  Supports TCP/IP and RS-485 communication with encrypted data transmission for enhanced security.
• Large Storage Capacity:
  • Stores up to 100,000 card users (expandable to 200,000)
  • Stores up to 300,000 access control events (expandable to 600,000)
• Advanced Access Control Functions:
  Includes multi-door interlocking, anti-passback, multi-card access, first-person, super card, and super password features.
• Comprehensive Alarm Support:
  • Tamper-proof alarm
  • Unsecured door alarm
  • Forced entry alarm
  • Delayed door alarm
  • Duress card/code alarm
  • Blacklist alarm
  • Invalid card attempt alarm
  • Short-circuit and open-circuit detection alarms
• Flexible Card Type Management:
  Supports normal, disabled, blacklist, patrol, guest, duress, and super card types.
• Offline Operation:
  Operates and records data even during network disconnection.
• Time Synchronization:
  Synchronizes via NTP, manual, or automatic methods for accurate event logging.
• Online Upgrade & Remote Control:
  Supports remote firmware updates and door management via network.
• Standby Battery Support:
  Ensures uninterrupted operation during power failures.
• Watchdog Function:
  Continuously monitors device status for reliable performance.
• Permanent Data Retention:
  Retains all data even after power loss for maximum system integrity.

Technical Specifications

Processor: 32-bit
Card Capacity: 100,000 (expandable to 200,000)
Event Storage: 300,000 (expandable to 600,000)
Card Number Length: Up to 20 digits

Communication & Interface

• Network Interface: TCP/IP, RS-485
• Reader Interface: Wiegand (W26/W34), compatible with third-party card readers
• Door Control: Supports 2 doors
• Input/Output Support:
  • Zone Alarm Input × 1
  • Door Sensors and Relays × Multiple
• Indicators: LED status indicators for device and communication

Power & Operation

• Operating Voltage: 12V DC (with battery backup support)
• Power Management: Supports standby battery
• Offline Capability: Supported
• Firmware Update: Online upgrade supported

Application Areas

• Corporate Offices & Commercial Buildings
• Financial Institutions & Data Centers
• Government & Public Facilities
• Educational Institutions & Campuses
• Industrial & Manufacturing Complexes
