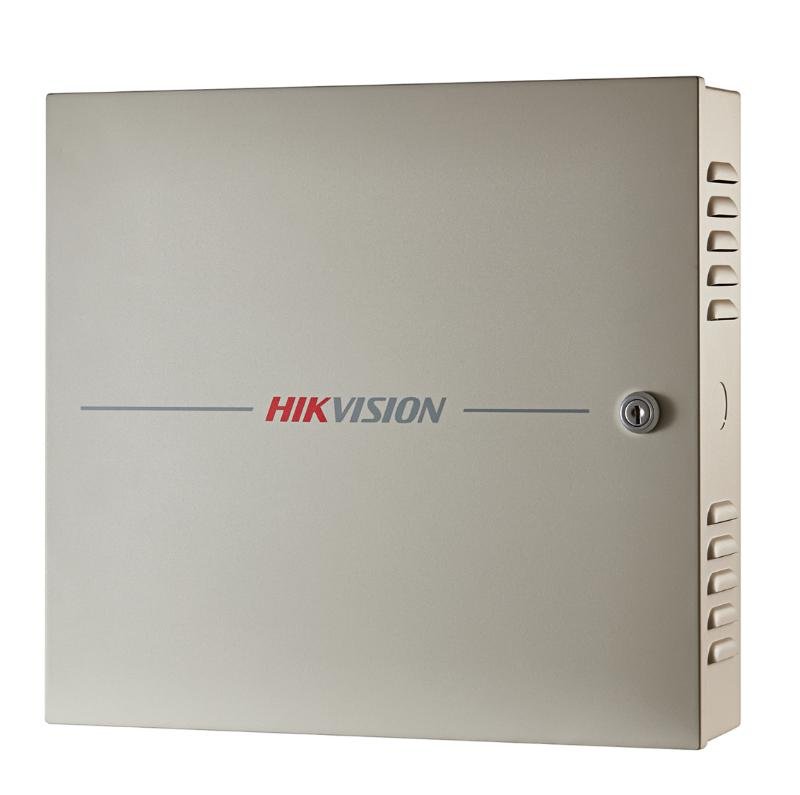

Hikvision DS-K2604 Pro Complete Access Network Controller – 4 Door Pro Series Access Controller

Buy Hikvision DS-K2604 Pro Complete Access Network Controller, a professional 4-door access control system from the Hikvision Pro Series designed for enterprise-grade security management. This advanced controller supports multiple authentication methods including cards, PIN codes, QR codes, fingerprints, and even facial recognition and license plate access (future-supported).

The DS-K2604 enables centralized access control for up to four doors, ensuring secure, efficient, and reliable entry management across large facilities. Featuring real-time event monitoring, tamper detection, and network-based configuration, this controller is ideal for high-security applications in corporate buildings, financial institutions, government facilities, and industrial sites.

Key Features

• Supports Multiple Authentication Modes: Cards, PIN codes, QR codes, fingerprints, and (future support) facial recognition and license plates.
• 4-Door Access Control: Manages four independent doors with complete alarm and relay support.
• High Storage Capacity:
  • Up to 100,000 user cards (expandable to 200,000)
  • Up to 300,000 access control events (expandable to 600,000)
• Advanced Communication Interfaces:
  • TCP/IP and RS-485 network communication
  • Wiegand (W26/W34) support for seamless integration with third-party readers
• Multi-Device Connectivity: Connects up to 8 card readers (RS-485) or 4 Wiegand readers simultaneously.
• Enhanced Security:
  • Tamper-proof detection
  • Case and door monitoring
  • Alarm relays for unauthorized access or forced entry
• Reliable Performance: Equipped with a 32-bit processor and non-volatile memory for stable operation and data protection.
• Future-Ready Expansion: Scalable architecture for system growth and additional authentication features.

Technical Specifications

• Card Capacity: 100,000 (expandable to 200,000)
• Event Capacity: 300,000 (expandable to 600,000)
• Memory: 16 MB
• Processor: 32-bit

Device Interfaces

• Output Interface:
  • Door Switch Relay × 4
  • Alarm Relay × 4
• Input Interface:
  • Alarm Input × 4
  • Door Magnetic × 4
  • Door Switch × 4
  • Case Input × 8
  • Tamper-proof × 1
• Uplink Communication: TCP/IP Network Interface and RS-485 Interface
• Downlink Communication: RS-485 and Wiegand (W26/W34)
• Card Reader Support:
  • 8 × RS-485 Readers
  • 4 × Wiegand Readers
• Working Voltage: DC 12V / 1A
• Power Consumption: ≤ 100W (with load)
• Mounting Type: Wall-mount
• Material: Durable metal enclosure

Applications

• Corporate Office Complexes
• Financial Institutions and Banks
• Government and Defense Buildings
• Educational Campuses
• Healthcare and Research Facilities
• Industrial and Manufacturing Sites
