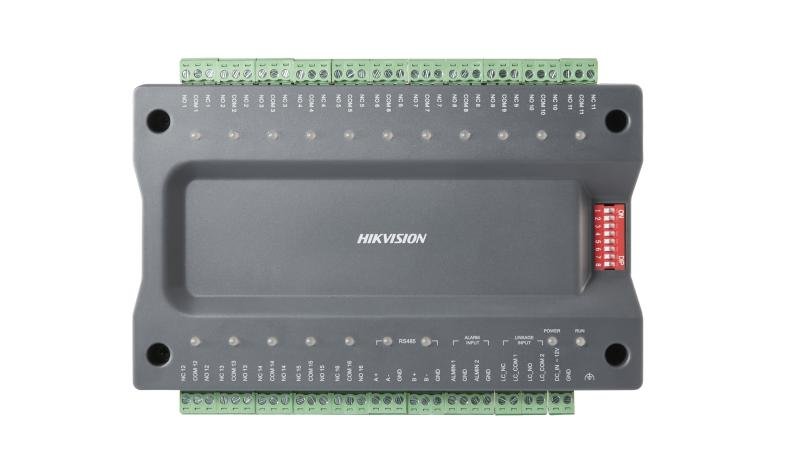

Hikvision DS-K2M0016A Elevator Sub-Controller

Buy Hikvision DS-K2M0016A Elevator Sub-Controller, a high-performance distributed elevator control module designed to enhance secure floor access management in multi-story buildings. This advanced Hikvision elevator sub-controller integrates seamlessly with the master elevator controller, supporting up to 16 relay outputs for floor button control and precise access authorization.

With RS-485 communication, DIP switch configuration, and industrial-grade reliability, the DS-K2M0016A ensures stable, real-time communication and efficient control for both commercial and residential elevator systems.

Key Features

• Distributed Elevator Controller – Controls up to 16 elevator floor buttons via independent relay outputs.
• Seamless Integration – Connects directly to the master elevator controller through the RS-485 interface.
• Expandable Design – Supports up to 8 distributed sub-controllers connected to a single master unit.
• Flexible Configuration – Easy DIP switch settings for device address and relay type customization.
• Stable & Secure Operation – 32-bit processor ensures fast, reliable, and encrypted control logic.
• Comprehensive Alarm Support – Equipped with 2 alarm inputs and 1 tamper-proof interface for enhanced security.
• Industrial Reliability – Wide operating temperature range and humidity tolerance for harsh environments.
• Easy Installation – Designed for guide rail mounting, ensuring a compact and professional setup.

Technical Specifications

• Model: DS-K2M0016A
• Processor: 32-bit high-speed processor
• Communication Interface: RS-485 × 2
• Alarm Inputs: 2
• Relay Outputs: 16
• Buzzer: 1 built-in alert buzzer
• Tamper-Proof Interface: 1
• Power Supply: 12 VDC ±15%
• Installation Method: Guide rail installation
• Dimensions: 167 mm (L) × 105 mm (W) × 30 mm (H)

Application Areas

• Commercial and Office Buildings
• Residential Complexes and Apartments
• Hotels and Hospitality Facilities
• Hospitals and Medical Centers
• Government and Institutional Buildings
• Industrial and Manufacturing Sites
• Smart Building and Integrated Access Systems
