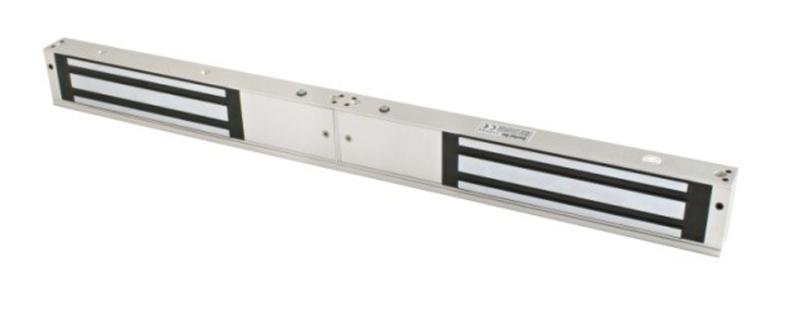

Hikvision DS-K4H250D Double-Door Electromagnetic Lock

Buy Hikvision DS-K4H250D Double-Door Magnetic Lock, a high-performance Pro Series access control solution designed for wooden, glass, and metal doors. Engineered with precision and built using zinc electroplated materials, this magnetic lock provides exceptional strength, reliability, and long-term durability for both residential and commercial installations.

With a maximum holding force of 600 kg (272 kg × 2), the DS-K4H250D ensures secure door locking through advanced electromagnetic technology, eliminating mechanical wear and offering quiet, friction-free operation. Its LED indicator and status signal output provide real-time lock status monitoring, making it an ideal choice for modern access control systems.

Key Features

• Powerful Dual-Door Security: Supports up to 600 kg (272 kg × 2) static linear thrust
• Flexible Power Options: Operates on 12 V DC (default) or 24 V DC
• Built-In Protection: Integrated voltage-dependent resistor (MOV) for surge protection
• LED Indicator: Displays door lock status for quick visual verification
• Durable Build: Constructed with zinc electroplating and abrasion-proof materials
• Wide Compatibility: Suitable for wooden, glass, metal, and fireproof doors
• Reliable Performance: No mechanical failure – works purely via electromagnetic force

Technical Specifications

• Hikvision DS-K4H250D Double-Door Magnetic Lock
• Lock Type: Electromagnetic (double-door)
• Holding Force: 272 kg × 2 (≈ 600 kg total)
• Input Voltage: 12 V DC / 24 V DC
• Operating Current: Approx. 500 mA @ 12 V DC
• Material: Zinc electroplated alloy housing
• Dimensions: 480 mm × 49 mm × 26 mm
• Weight: 4.2 kg
• Signal Output: Door-lock-status signal (NO / NC / COM)
• Indicator: LED (lock status display)

Applications

• Office buildings and business centers
• Banks, ATMs, and financial institutions
• Hospitals, schools, and government facilities
• Residential complexes and smart home systems
• Data centers and restricted-access areas
