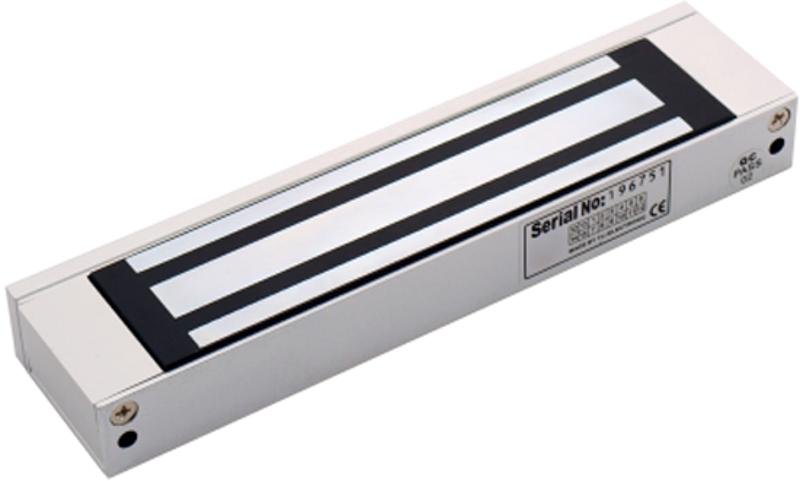

Hikvision DS-K4H250S(O-STD) Single-Door Electromagnetic Lock

Buy Hikvision DS-K4H250S(O-STD) Single-Door Magnetic Lock, a high-performance Pro Series electromagnetic lock designed for wooden, glass, metal, and fireproof doors. Built with advanced electromagnetism technology, this lock delivers strong holding force, durability, and smooth operation, ensuring maximum security in commercial and institutional access control systems.

Ideal for use in offices, schools, banks, data centers, and residential buildings, the DS-K4H250S(O-STD) offers reliable performance with minimal maintenance requirements.

Key Features

• Strong Holding Force: Supports up to 272 kg (600 lbs) static linear thrust
• Flexible Power Options: Operates on 12 VDC (default) or 24 VDC power supply
• Built-In Protection: Equipped with internal voltage-dependent resistor (MOV) to prevent power surges
• LED Indicator: Displays real-time door lock status for easy monitoring
• Durable Design: Made from abrasion-proof materials for long-lasting performance
• Versatile Application: Suitable for wooden, glass, metal, and fireproof doors

Specifications

• Hikvision DS-K4H250S(O-STD) Single-Door Magnetic Lock
• Lock Type: Electromagnetic single-door lock
• Holding Force: 272 kg / 599.8 lbs
• Input Voltage: 12 VDC (default) / 24 VDC
• Current Draw: Approx. 500 mA @ 12 VDC
• Status Indicator: LED (shows door lock status)
• Material: Abrasion-proof aluminum alloy housing
• Applicable Door Types: Wooden, glass, metal, fireproof

Applications

• Office and commercial buildings
• Banking and financial institutions
• Server rooms and restricted zones
• Hospitals and schools
• Residential smart access systems
