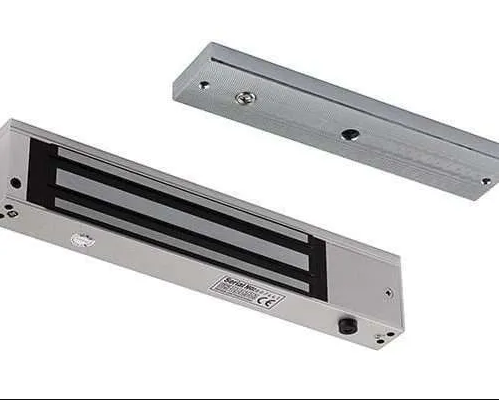

Hikvision DS-K4H450S Pro Series Single Door Magnetic Lock

Buy Hikvision DS-K4H450S Pro Series Magnetic Lock for a dependable and secure single-door locking solution ideal for offices, commercial buildings, and institutional facilities. Designed with a powerful 450 kg (1000 lbs) holding force, this lock ensures reliable door security through advanced electromagnetic technology.

The DS-K4H450S supports 12 VDC and 24 VDC auto-sensing power inputs, making it flexible and compatible with various access control systems. Its anodized aluminum housing provides durability and corrosion resistance, while the LED status indicator offers clear visual feedback for easy monitoring of lock and power status.

Key Features

• Strong Holding Force: Provides up to 450 kg (1000 lbs) of static linear thrust for enhanced security.
• Dual Voltage Input: Supports 12 VDC or 24 VDC (auto-sensing) for flexible installation.
• LED Status Indicator: Red shows power on, green indicates lock status.
• Durable Construction: Built with anodized aluminum housing for long-lasting performance and resistance to wear.
• Low Power Consumption: Efficient current draw for energy-saving operation.
• Easy Integration: Compatible with wooden, glass, metal, and fireproof doors.
• Reliable Operation: Provides stable performance for both indoor and semi-outdoor environments.

Technical Specifications

• Hikvision DS-K4H450S Pro Series Magnetic Lock
• Series: Pro Series Magnetic Lock
• Holding Force: 450 kg (1000 lbs)
• Input Voltage: 12 VDC / 24 VDC (auto-sensing)
• Current Draw:
  • 12 VDC: 480 mA
  • 24 VDC: 240 mA
• LED Indicator:
  • Red – Power On
  • Green – Lock Status
• Material / Finish: Anodized aluminum housing
• Magnet Dimensions (L × W × H): 250 × 48 × 26 mm (9.84″ × 1.89″ × 1.02″)
• Armature Plate Dimensions (L × W × H): 180 × 38 × 13 mm (7.09″ × 1.50″ × 0.51″)
• Total Weight: 2.4 kg (5.29 lbs)

Applications

• Office and corporate entry points
• Commercial and retail premises
• Industrial and warehouse access control
• Schools, hospitals, and government buildings
• Residential security doors
