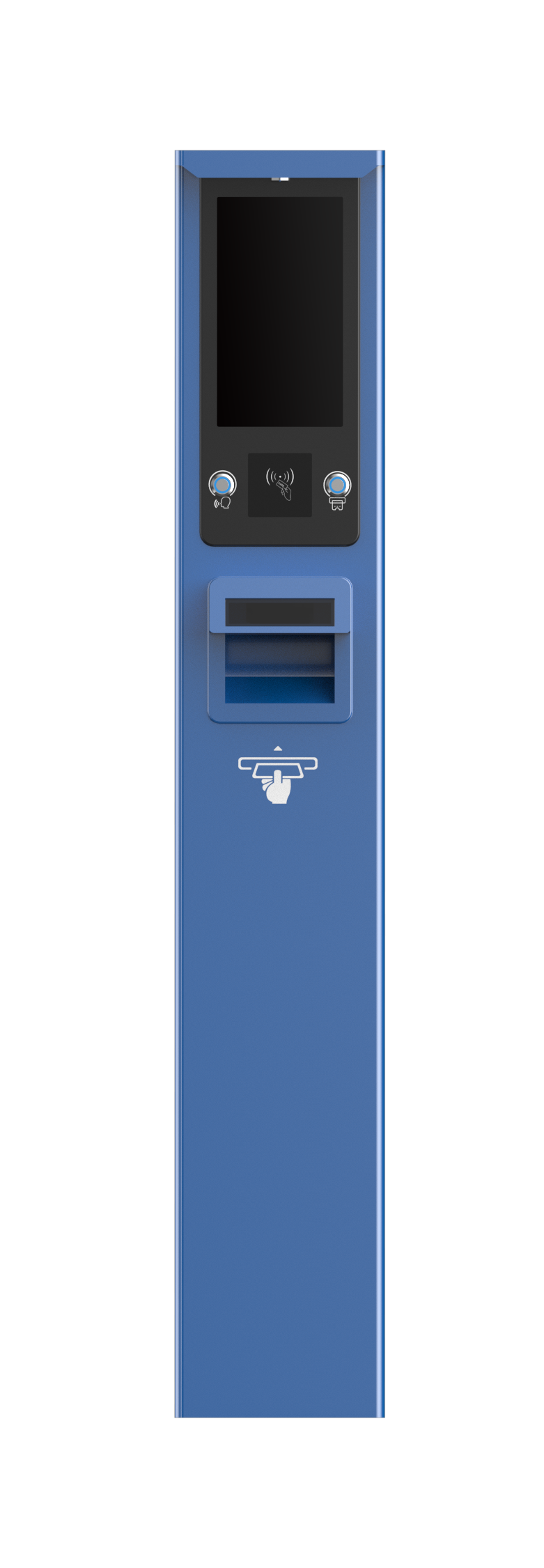

Hikvision DS-TMT201-D Entrance & Exit Ticket Controller
Buy Hikvision DS-TMT201-D Entrance Ticket Controller, a high-performance entrance and exit management station designed for smart parking, gated communities, and access control systems. This intelligent device integrates ticket printing, card reading, voice intercom, and visual display into a single unit for efficient and secure vehicle or pedestrian entry management.
Built with a 10.1-inch high-brightness LCD screen, thermal printer, and IC card reader, the DS-TMT201-D ensures smooth ticketing and access validation. Its robust communication interfaces and embedded Linux system guarantee reliable performance in both indoor and outdoor environments.
Key Features
- Integrated Ticket & Access Control System – Combines ticket issuing, card reading, and display functionalities in one device.
- High-Definition Display – 10.1″ high-brightness LCD screen supporting text, images, videos, and QR code display.
- Fast & Reliable Thermal Printer – 57mm thermal printing with large 150mm roll capacity for extended operation.
- Real-Time Two-Way Voice Intercom – Built-in microphone and 5.5W speaker with echo and noise cancellation.
- Durable Build – Designed for high-traffic environments, with anti-fall paper design and wide temperature tolerance.
- Flexible Communication Options – Supports TCP/IP network interface for fast data transmission.
- Integrated IC/CPU Card Reader – Supports 13.56MHz frequency for secure and efficient access validation.
- Embedded Linux System – Ensures high system stability and continuous operation.
Technical Specifications
Model: DS-TMT201-D
Product Type: Entrance & Exit Ticket Controller
Display
- Screen: 10.1-inch LCD
- Resolution: 1080P
- Function: Displays text, QR codes, images, and videos
Printer
- Print Mode: Thermal printing
- Paper Width: 57 mm
- Roll Diameter: Outer 150 mm / Inner 12±1 mm
- Paper Thickness: Up to 120 g/m²
- Remarks: Upper margin 1.5 cm, bottom margin 1 cm
Card Reader
- Type: IC card / CPU card
- Frequency: 13.56 MHz
Audio
- Audio Encoding: G.711U
- Bit Rate: 64 Kbps
- Input: Omni-directional microphone
- Output: 5.5W loudspeaker
- Features: Echo suppression, noise cancellation
- Mode: Full-duplex two-way voice intercom
Network & Interface
- Network Protocol: TCP/IP
- Network Interface: 10M/100M self-adaptive ×1
- Alarm Input: 2
- Alarm Output: 2
System & Power
- Operating System: Embedded Linux
- Power Supply: 220V, 50Hz
- Power Consumption: <100W
- Communication: Relay-out interface for barrier control
Environmental & Physical
- Dimensions: 230 × 248 × 1386 mm
- Weight: 16.86 kg (net), 19.51 kg (with package)
- Dimensions (Packaged): 320 × 360 × 1492 mm
Application Areas
- Parking Lots and Garages
- Toll Stations and Vehicle Entry Points
- Smart Residential Communities
- Commercial Building Entrances
- Industrial Zone Access Control
- Public Transport Terminals
- Theme Parks and Ticketed Facilities
