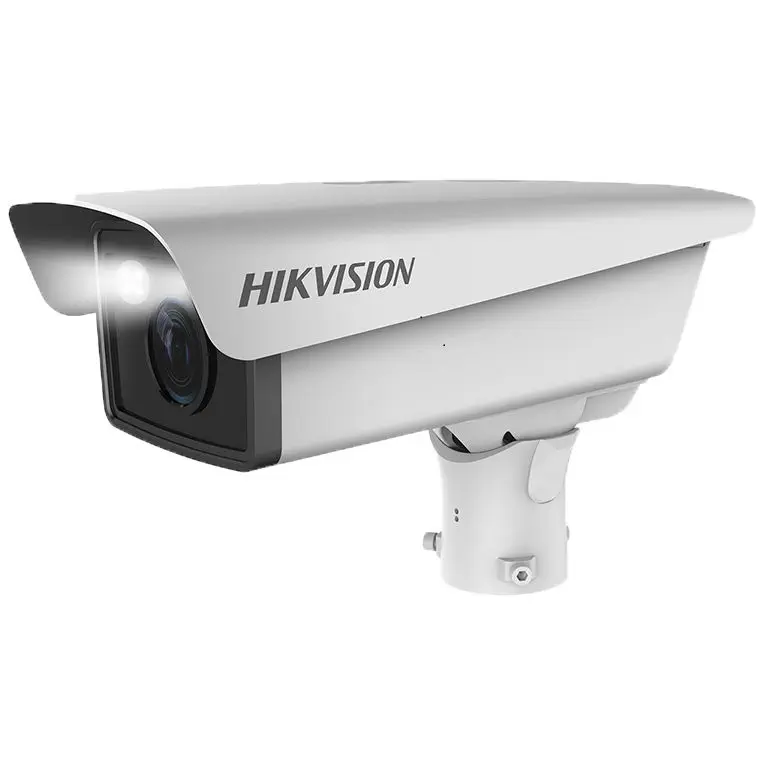

HIKVISION DS-TCG205-E (12V PoE) – Intelligent Entrance Video Unit

The HIKVISION DS-TCG205-E (12V PoE) delivers clear video imaging and reliable performance at entry points, gates, and doorway locations. Its integrated camera module captures crisp video footage of visitors and vehicles, while the wide-angle lens covers entrance zones with minimal blind spots. The unit’s built-in microphone and speaker facilitate seamless two-way communication for visitor screening and access interaction.

Designed to support easy installation, the unit accepts 12V PoE power and network data via a single cable. This simplifies setup and reduces wiring complexity. The rugged housing withstands weather conditions and daily use, making it suitable for outdoor entrance environments. With smart detection features and quality audio/video integration, this intelligent entrance video unit enhances security and access control for residential, commercial, and gated communities.

Features

• ANPR and Vehicle Recognition: Utilizes deep learning for high-accuracy license plate recognition (capture rate > 98%) and can identify vehicle type, color, and brand.
• Integrated Access Control: Supports up to 30,000 (or up to 100,000 in some versions) whitelists/allowlists, allowing offline control and automated barrier gate operation via two built-in relay outputs.
• High-Quality Imaging: Features a 2MP (1920 × 1080 or 1920 x 1200) resolution camera with a 3.1–6 mm motorized vari-focal lens and one-touch focus for easy setup.
• Illumination: Includes integrated high-performance white and IR LEDs for 24/7 clarity and night-time recognition.
• Durable Design: The unit is IP67-rated (and in some cases IK10 vandal-resistant) for outdoor use and can operate in harsh weather conditions (-25°C to 70°C).
• Power & Connectivity: Supports dual power options: 12V DC or Power over Ethernet (PoE 802.3af), simplifying installation. It also has various interfaces including Ethernet, RS-485, and alarm I/O.
• Storage: Includes a built-in TF/microSD card slot for onboard storage of up to 128GB (or up to 1TB in some versions).

Specifications

Applications

• Secure entrance and gate monitoring
• Visitor screening and access control
• Residential compound entry points
• Commercial office entrances
• Gated community access systems

Enhance your entrance security with the HIKVISION DS-TCG205-E Intelligent Video Unit. Get clear imaging, two-way communication, and simple installation for effective access control.
