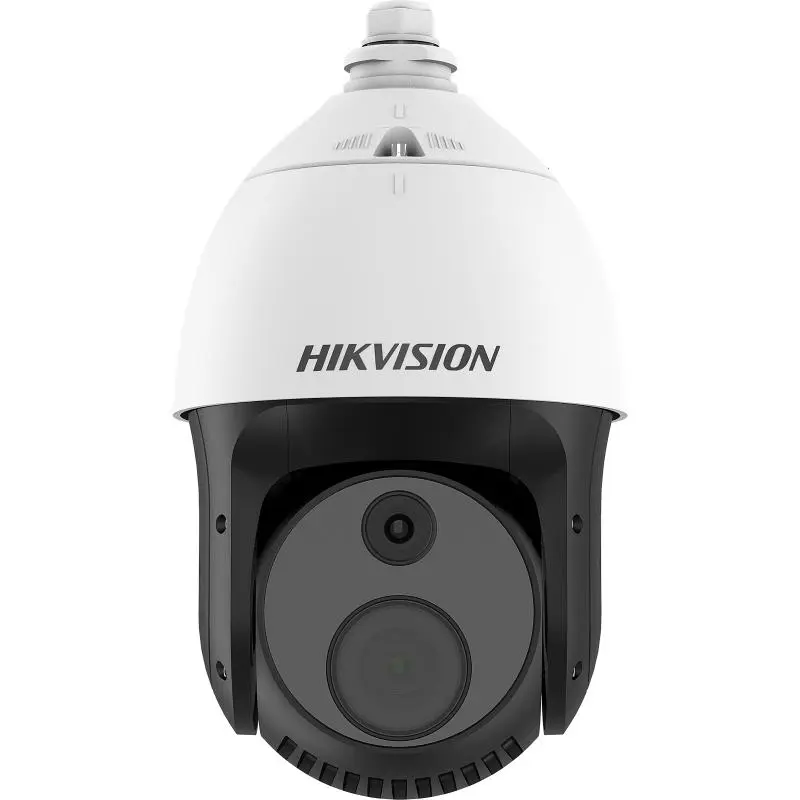

HIKVISION DS-2TD4228T-10/S2 – Thermographic Thermal & Optical Bi-Spectrum Network Speed Dome

HIKVISION DS-2TD4228T-10/S2 combines thermal imaging with a high-resolution optical camera in a bi-spectrum speed dome. The thermal sensor detects heat signatures and temperature differences across large areas. This helps to identify elevated temperatures, hot spots, and unusual thermal patterns. The visible light camera delivers detailed optical video, enabling clear scene interpretation alongside thermal data.

This network speed dome design supports remote pan, tilt, and zoom control for broad coverage and precise target tracking. The integrated thermal and optical streams enhance situational awareness in perimeter, critical infrastructure, and industrial applications. With robust outdoor construction and network connectivity, this camera fits demanding monitoring scenarios that require both thermal insight and visual detail.

Features

• Dual-Spectrum Imaging: Fuses thermal (256 × 192 resolution, 10mm lens) and optical (4MP, 2688 × 1520 resolution, 32x optical zoom) imaging for detailed surveillance in all lighting and weather conditions.
• Thermography: Provides accurate temperature measurement in a range of -20 °C to 550 °C (-4 °F to 1022 °F), with a high accuracy of max ±2 °C or ±2%.
• Smart Functions: Includes deep learning-based analytics such as line crossing, intrusion detection, region entrance/exit, and dynamic fire and smoke detection, with up to 10 detectable fire points.
• Smart Tracking: Supports panorama, event, and multi-scene patrol tracking, with smart linkage between the thermal and optical views.
• Durability: Features an IP66 weatherproof rating, a wide operating temperature range of -40°C to 70°C, and built-in lightning/surge protection, making it suitable for harsh outdoor environments.
• PTZ Functionality: Offers continuous 360° pan and a -5° to 90° tilt range with high-speed movement and up to 300 configurable presets.
• Connectivity: Includes a 10M/100M Ethernet interface, alarm I/O, audio I/O, and supports on-board storage via a microSD card (up to 256GB).

Specifications

Applications

• Perimeter and boundary security
  • Industrial facility monitoring
  • Critical infrastructure protection
  • Thermal anomaly detection
  • Airport, port, and large campus surveillance

Enhance wide-area security with the HIKVISION DS-2TD4228T-10/S2 Thermographic Bi-Spectrum Network Speed Dome. Get thermal insight, detailed optical imaging, and full PTZ control for comprehensive perimeter and site monitoring.
